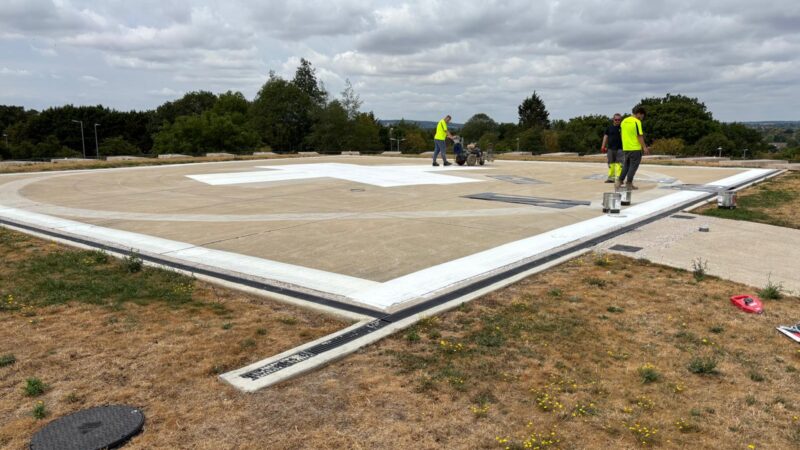

Roadgrip has recently completed the refurbishment of the helipad at John Radcliffe Hospital in Oxford, removing the existing worn markings before preparing the surface and installing a new helipad marking system to the required specification.
Helipads at major hospitals are among the most critical pieces of transport infrastructure in the UK. Every landing supports time-sensitive patient transfers, trauma response or emergency medical care, meaning the surface markings must remain clear, compliant and highly visible at all times.
Before new markings can be applied, the existing surface must be carefully prepared.

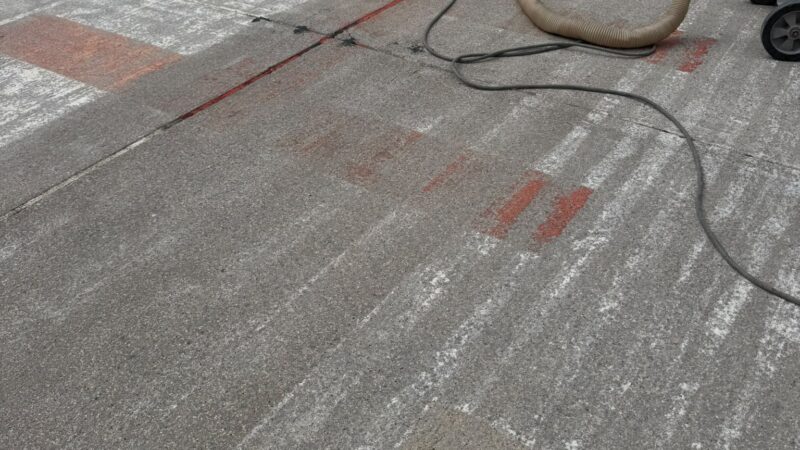

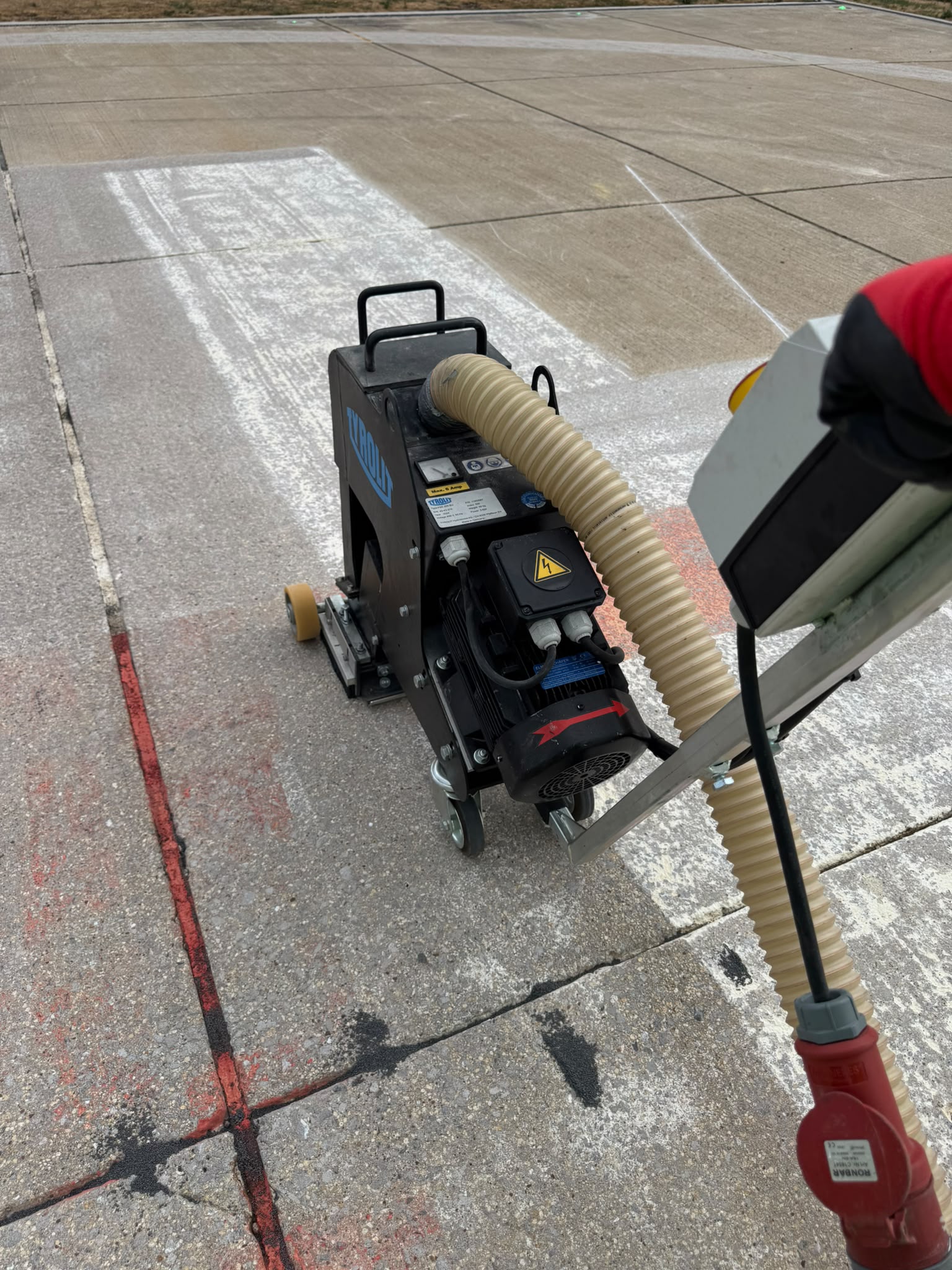

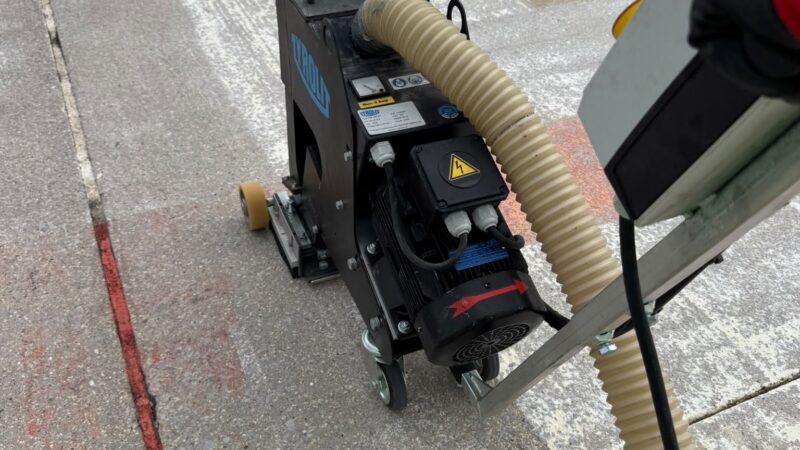

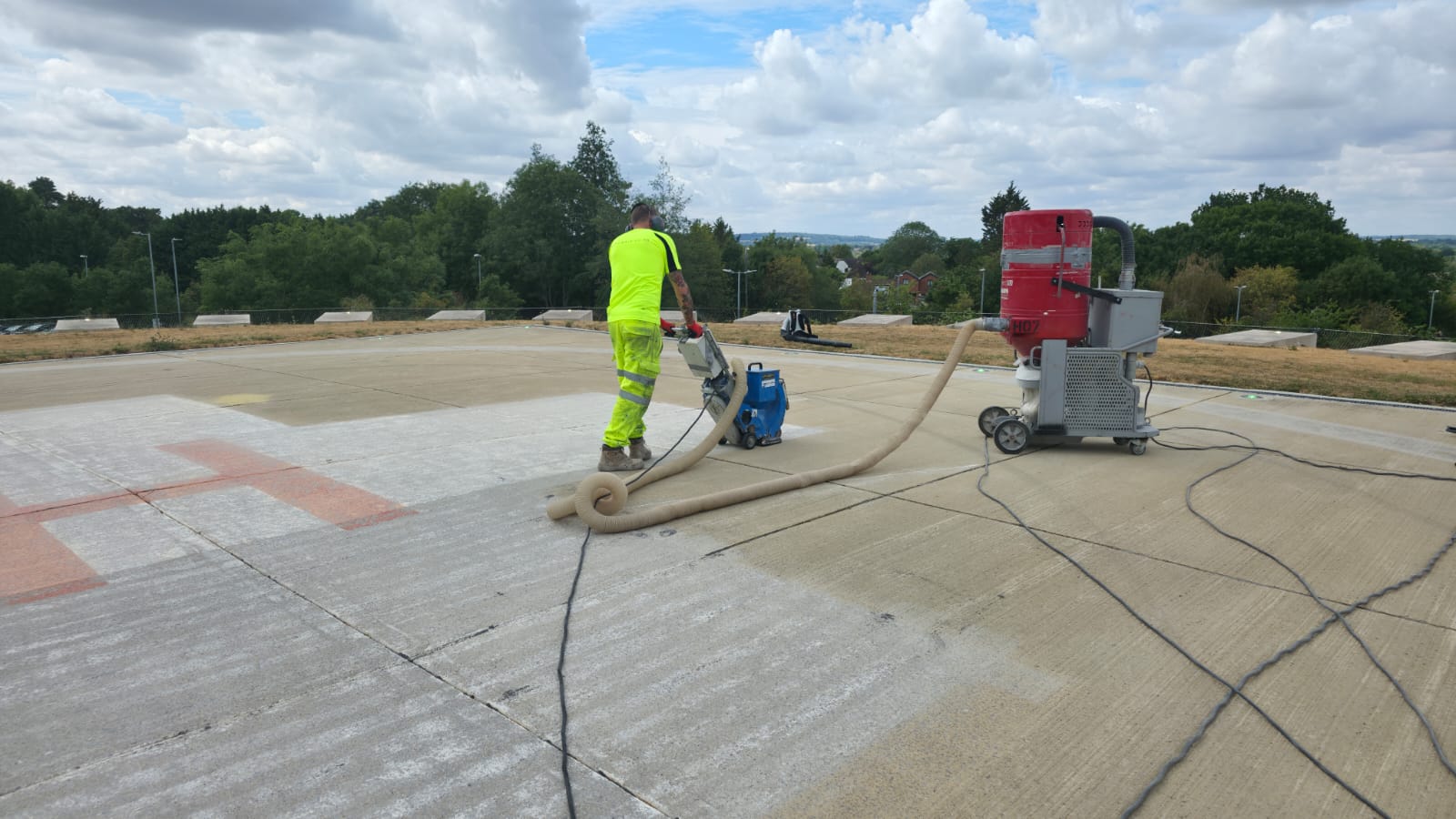

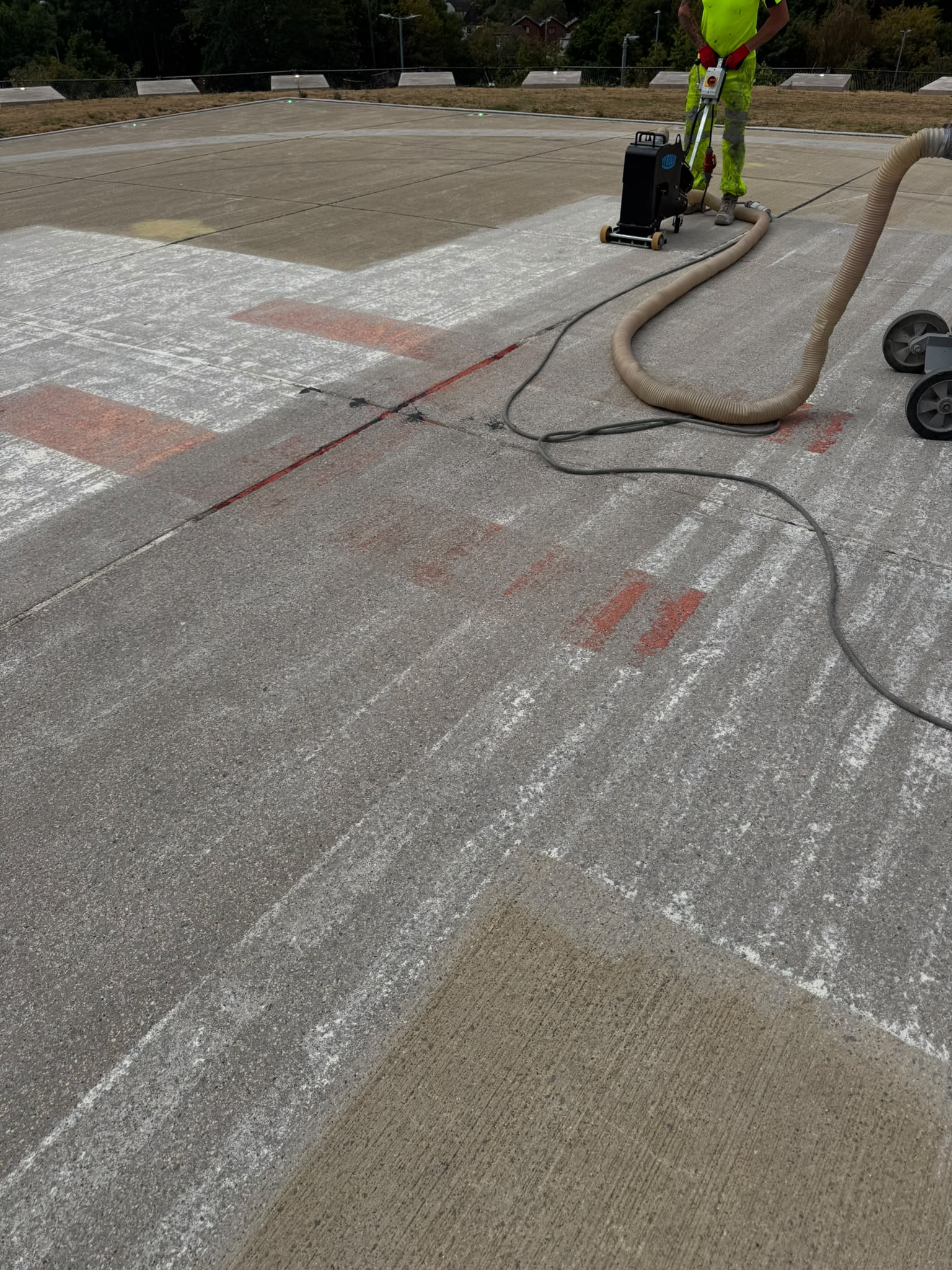

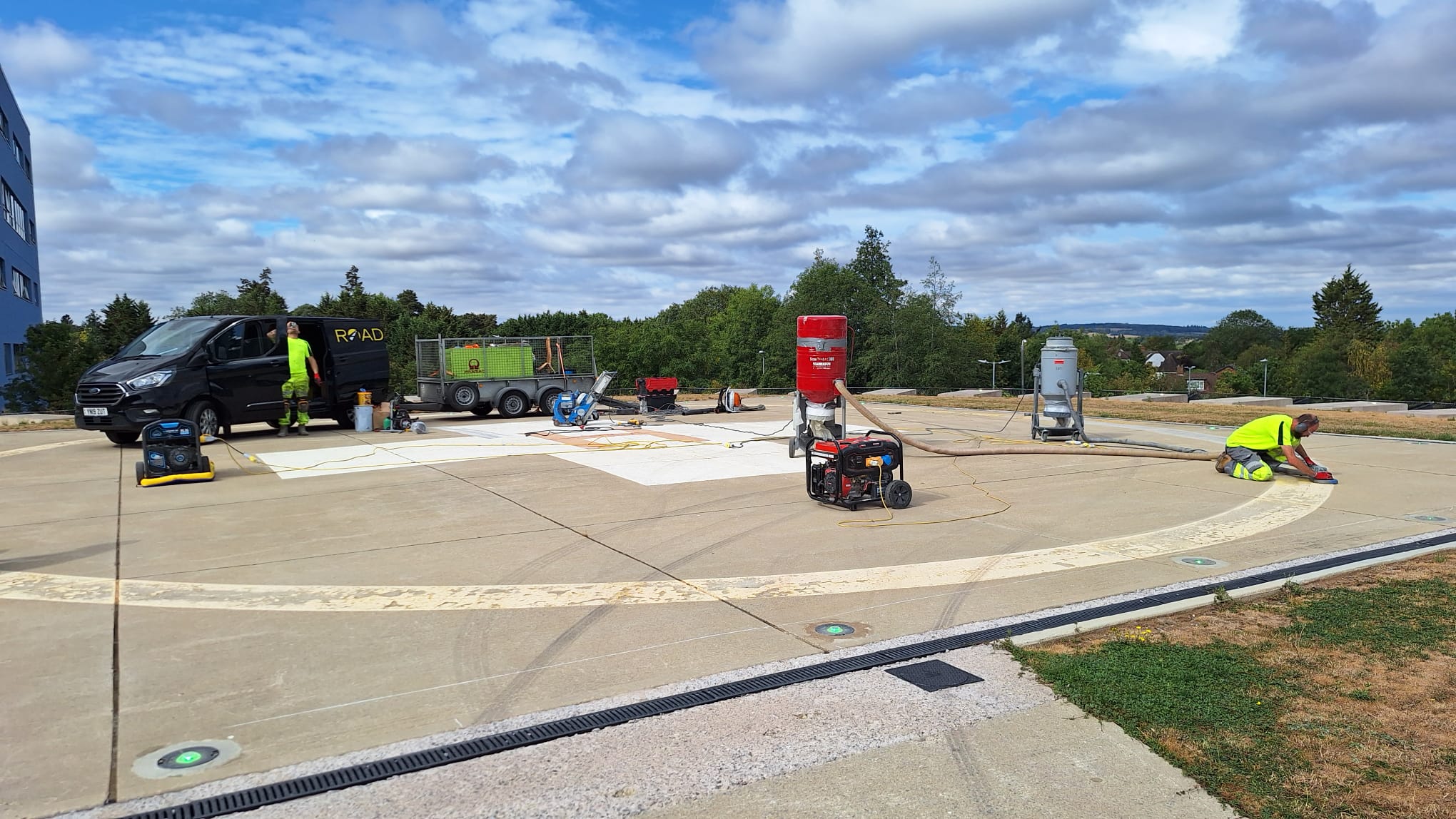

For this project, Roadgrip used a combination of angle grinding and captive shotblasting to remove the old paint and deteriorated markings while creating the ideal surface profile for the new coating.

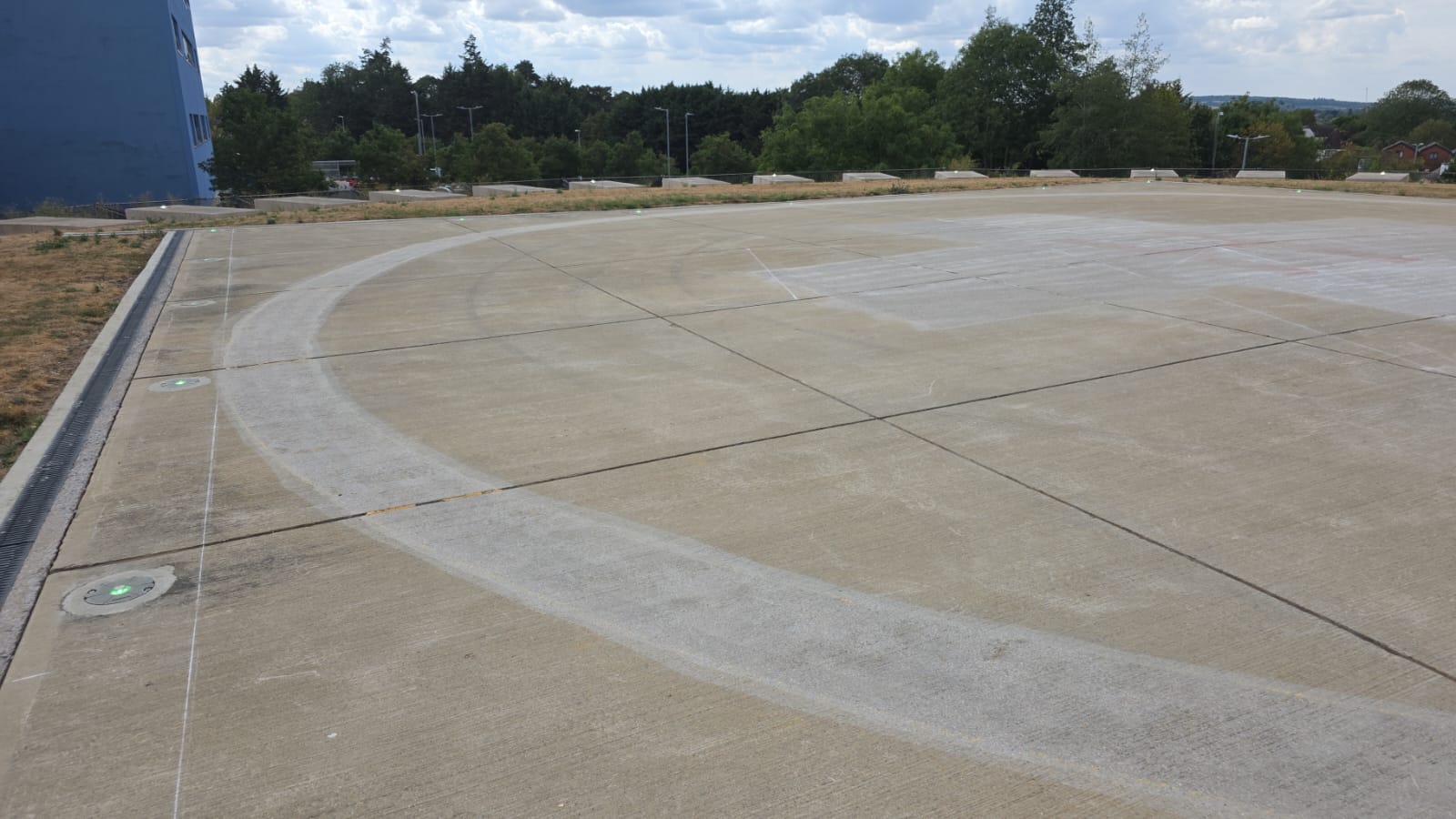

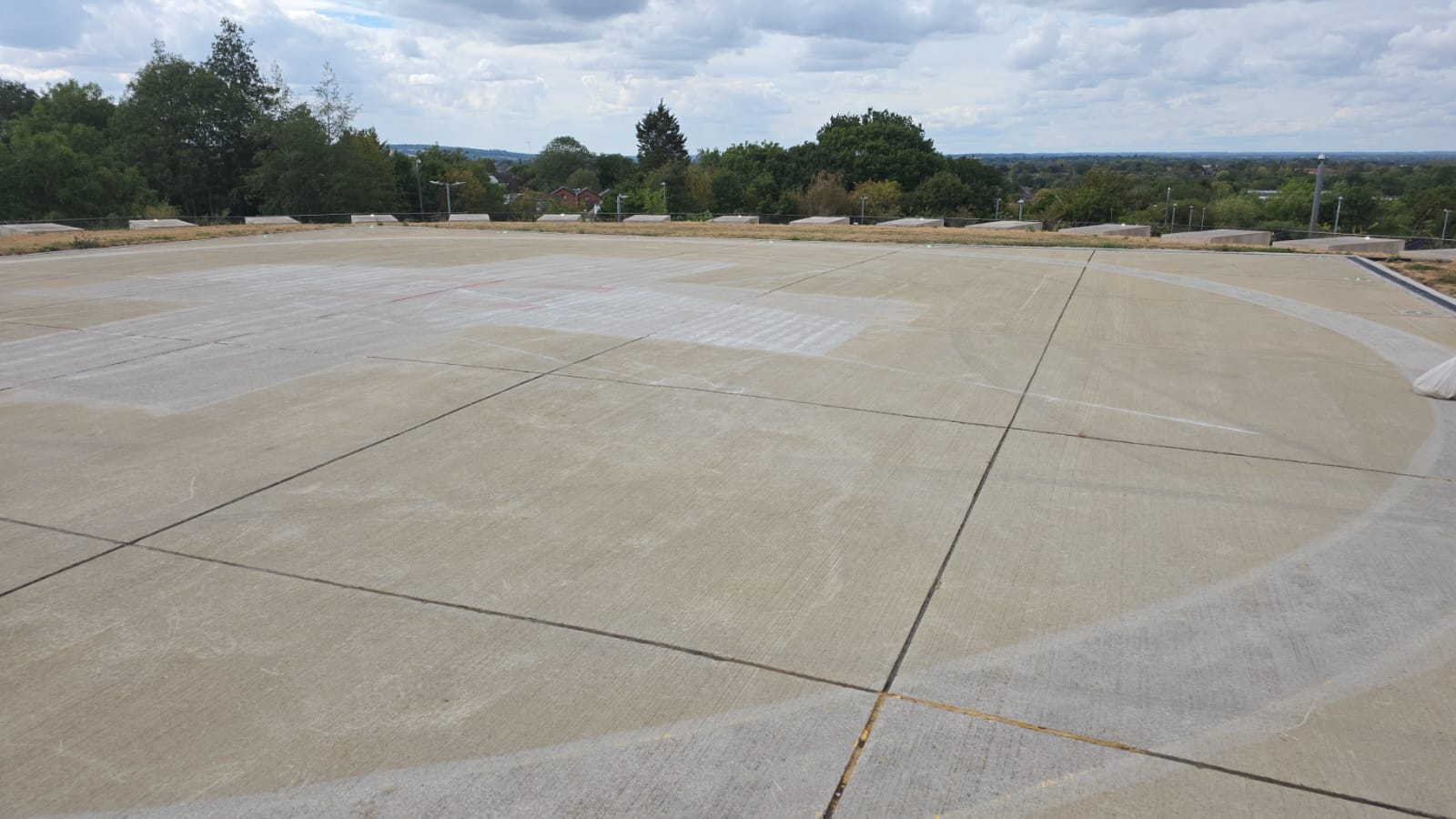

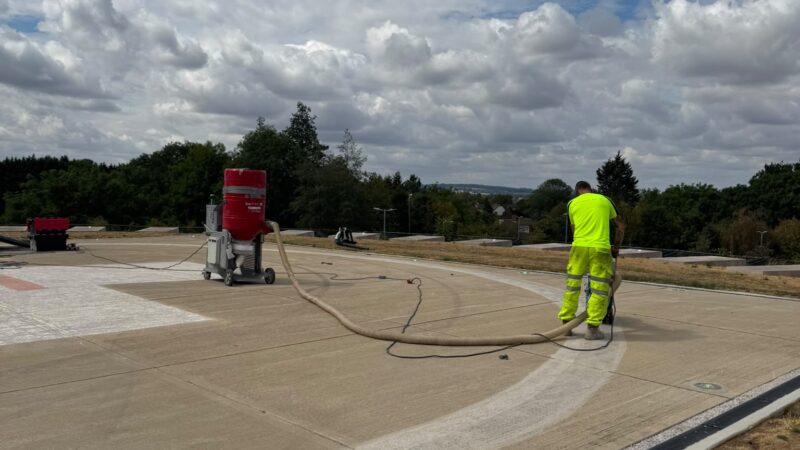

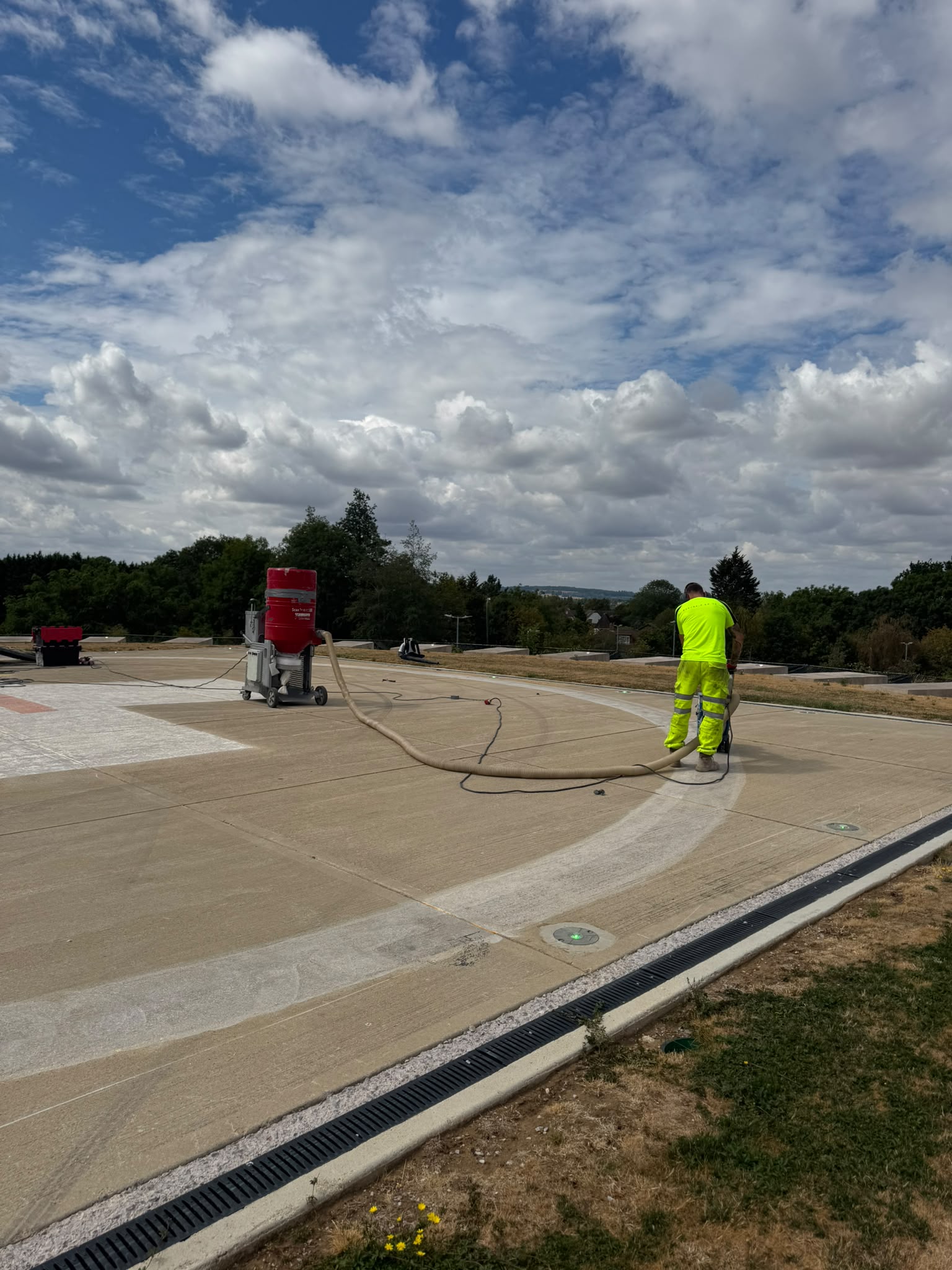

Angle grinding allowed the team to accurately remove stubborn markings and detailing, while captive shotblasting cleaned and textured the surface without damaging the underlying pavement. This process not only removes residual coatings but also creates a mechanical key, ensuring the new paint achieves maximum adhesion and long-term durability.

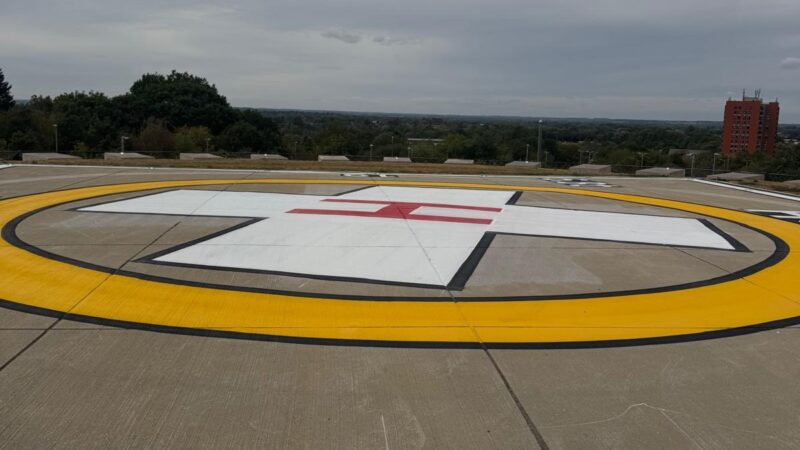

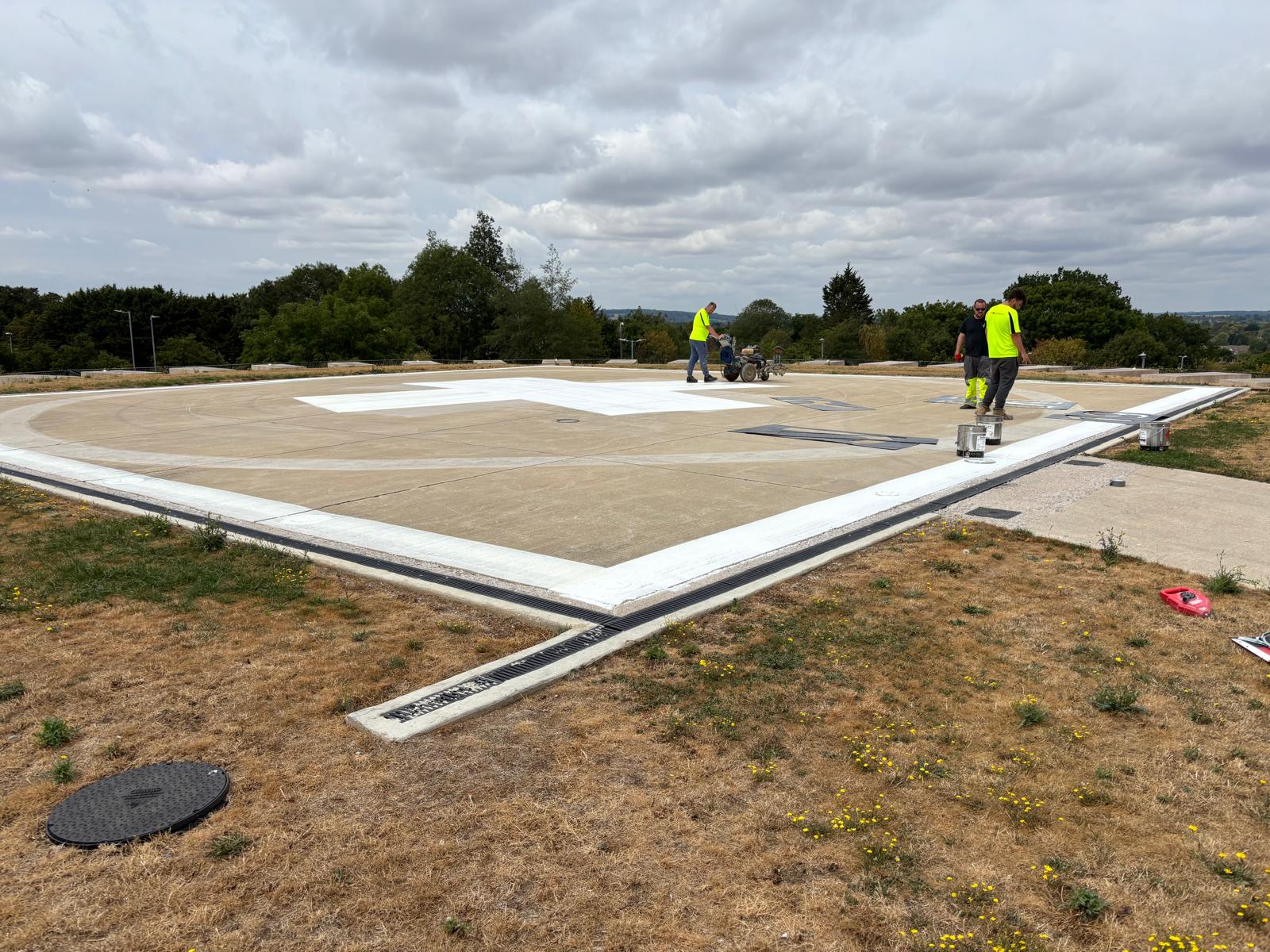

With the surface fully prepared, Roadgrip installed the new helipad markings using a high-performance epoxy paint system.
Epoxy coatings are widely specified for aviation applications due to their durability, excellent adhesion and resistance to weathering, fuel spillages and frequent cleaning. They also provide the crisp, highly visible finish required to ensure the helipad remains easily identifiable for pilots approaching in a wide range of lighting and weather conditions.

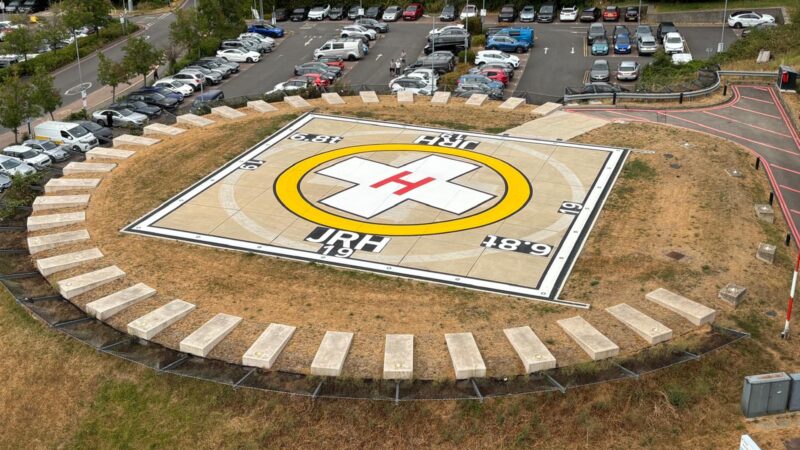

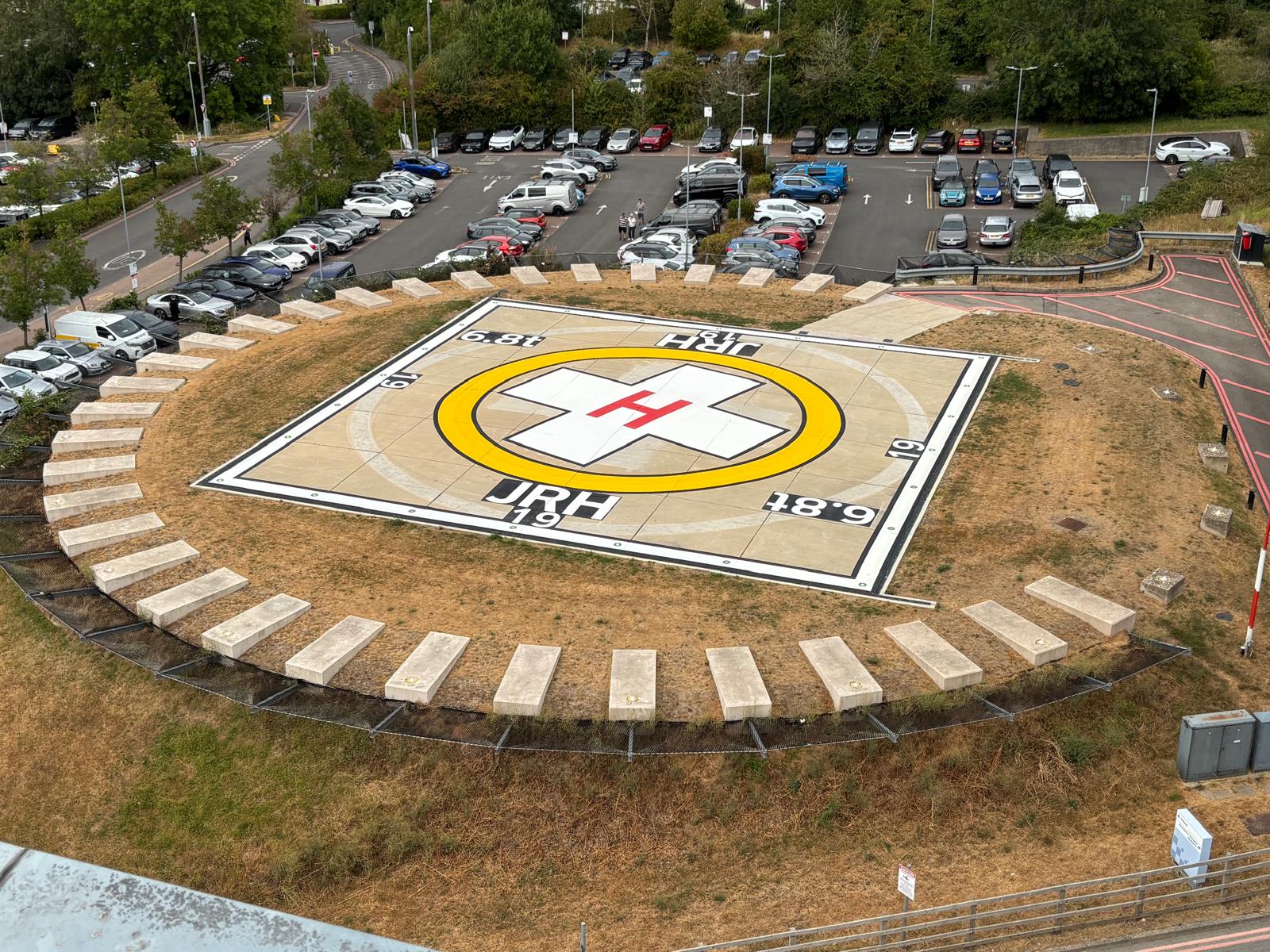

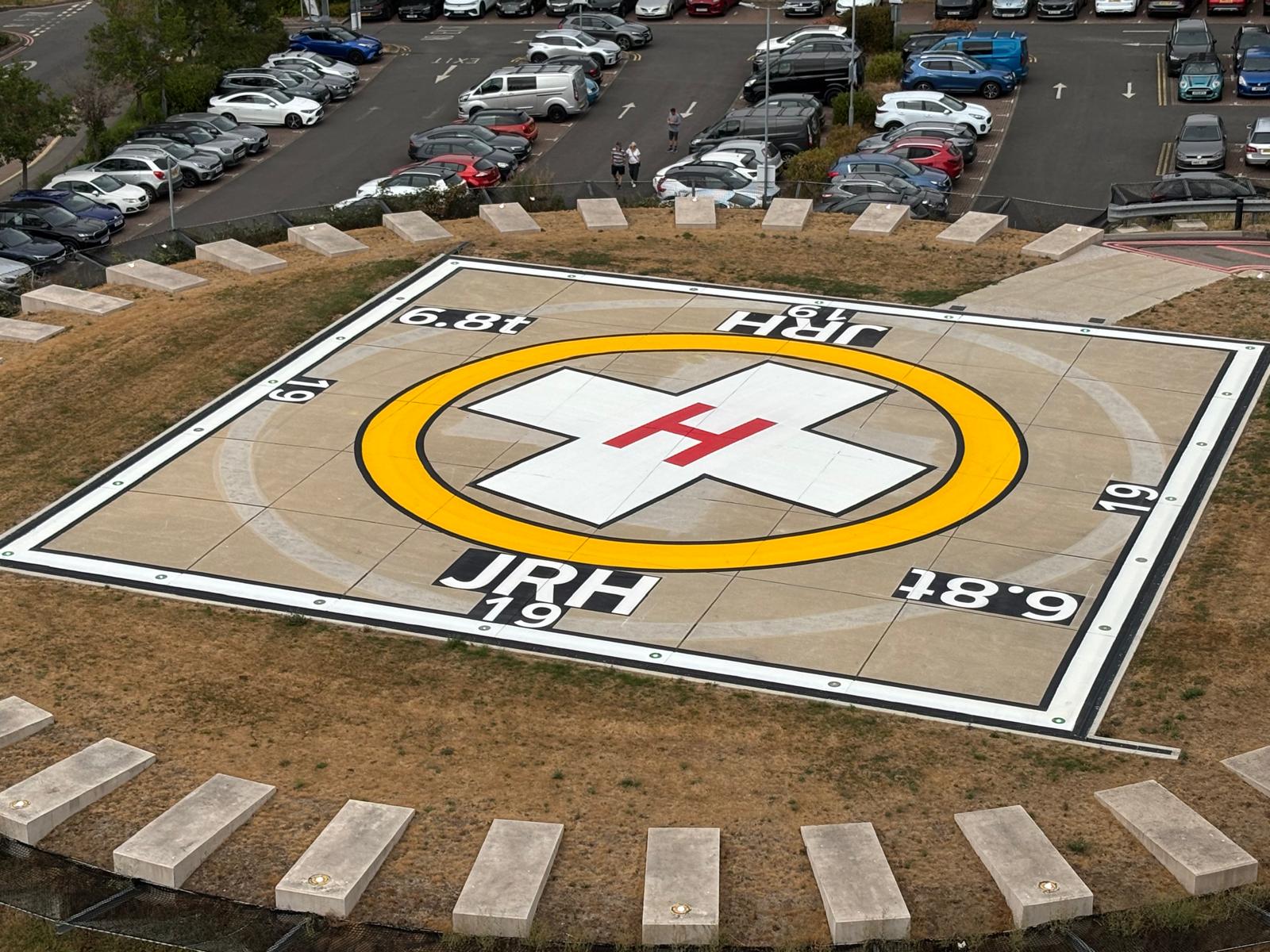

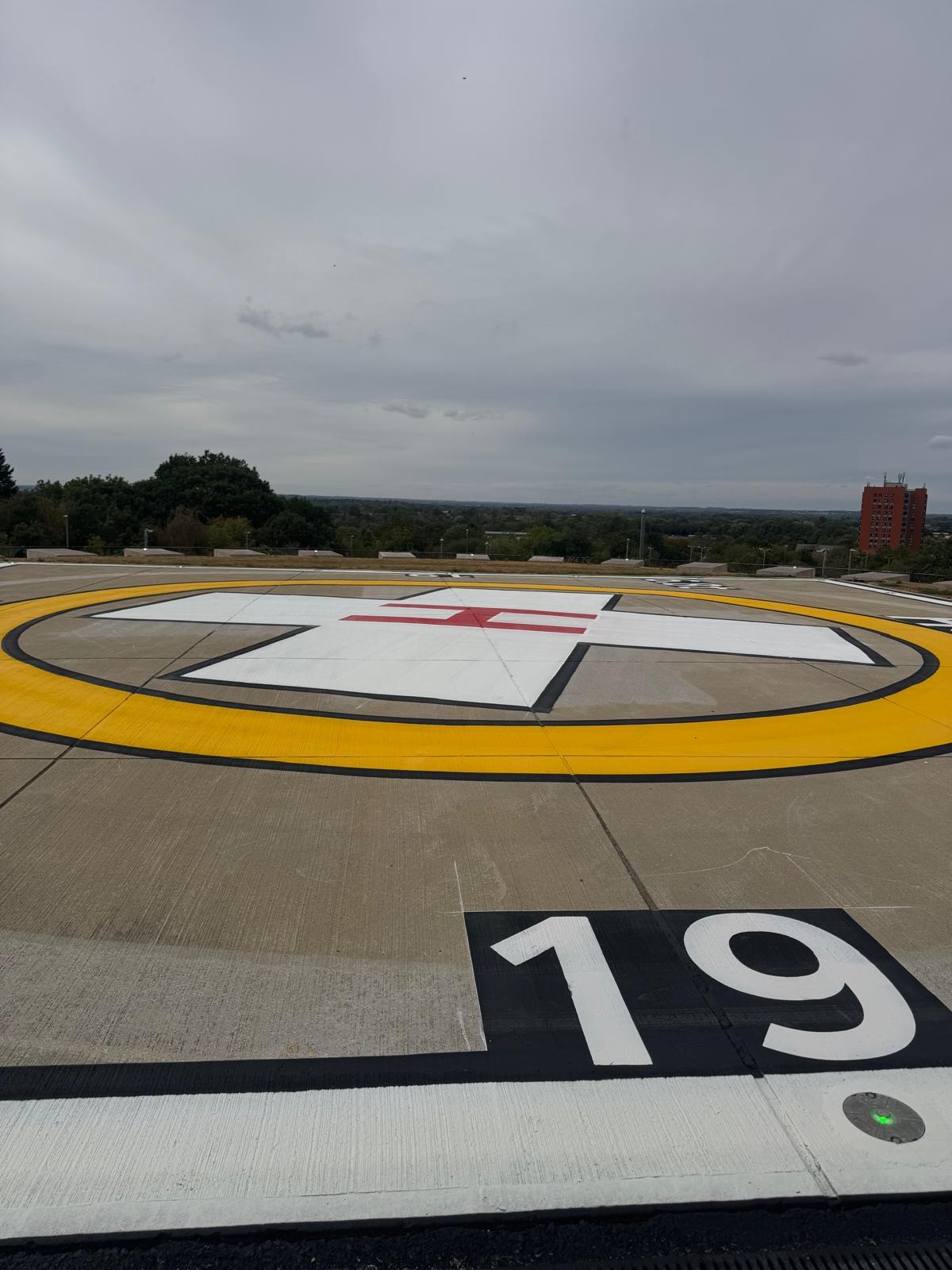

The landing circle, touchdown point, orientation markings and identification graphics now provide helicopter pilots with essential visual guidance during approach and landing, helping ensure safe and accurate aircraft positioning.
Over time, exposure to ultraviolet light, weather, rotor wash and regular operational use causes markings to fade and wear. Periodic refurbishment is therefore an important part of maintaining both compliance and operational safety. Contact our global airports team to find out more or visit Roadgrip Airports.
